Model

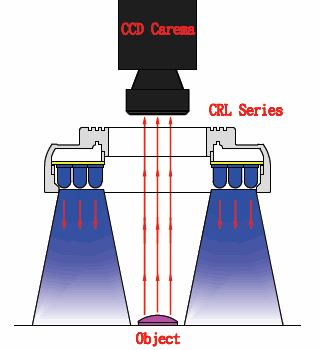

LED arrays arranged in 0 degree to illuminated object from the same axis of camera to enhance image contrast.
l Cost-effective and widely used Constant Current control LED ring light.
l Steady brightness, long lasting and no thermal handling problem.
l Slight weight (80 g), only half or 1/3 of conventional LED ring light with the same or more brightness.
l Compact and robust mold housing with classically elegant appearance.
l LED arrays are assembled on flexible PCB with high precision to achieve desired ring angle from lower to vertical for different ring light model.
l Strobe and continuous operation available.
l Optional diffuse plate, extended cable.
l 2 or 3 LED rings, colors – white, red, green, blue, UV, IR.
l Fiducial mark, character recognition on flat or surface.
l Light source for 2D, 3D measuring or AOI inspection system.
l Substrate, label, bar code inspection or defect inspection.
|
Model |
Color |
Working Distance (mm) |
Dimension (mm) |
|
|
Dark-field < 150 mm |
Inner Ø 50, Outer Ø 88, Height 25 |
|
|
|
Dark-field < 120 mm |
Inner Ø 50, Outer Ø 88, Height 25 |
|
|
|
< 20 mm |
Inner Ø 50, Outer Ø 88, Height 15 |
|
|
|
|
|
|
|
|
|
|
|
