                                     >> Products  >> Machine Vision Lighting >> UBL series Back Light

  UBL Features Applications Available Models
  UBL series Back Light

Model


UBL-3030
UBL-5050
UBL-100100

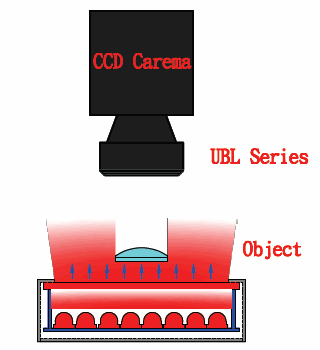

LED are arranged in high density array to project outline and bottom of object. Various color and size can be selected.

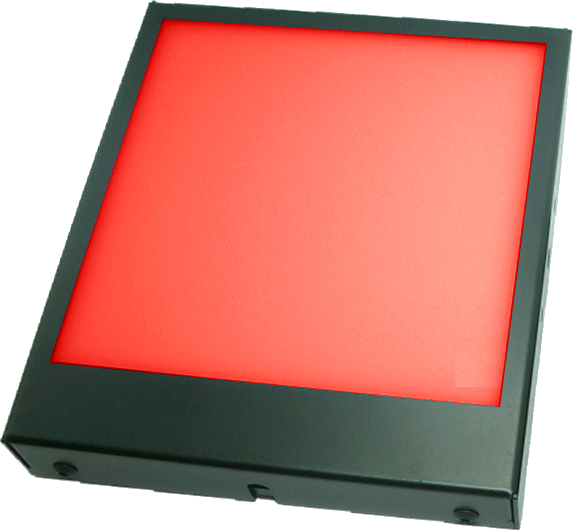

SBL-100100-R

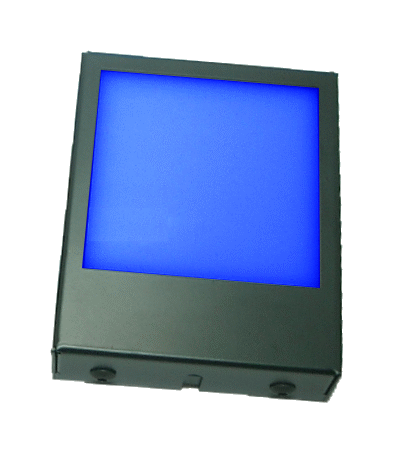

SBL-5050-B


  Features


l  Integrated brightness intensity and flash time controller. (* Specific model)

l  Emitting area from 25x25 mm to 2,000x2,000 mm and colors selectable.

l  Evenly emission and long lasting design.

l  Low heat generates and high power saving.

l  Provide high contrast to outline and bottom of object.

l  Strobe and continuous operation available.


  Applications


l  Transparent object inspection or alignment.

l  Fiducial alignment or shape recognition.

l  Dimension, drill hole size measurement.

l  Edge detection, scratched on glass or shining surface inspection.


  Available Models

Model

Color

Working Distance (mm)

Dimension (mm)

UBL-3030-W/R/G/B/Y/IR/UV

//////

0 - 60

54 x 40 x 18

Emitting Area 30x30

UBL-5050-W/R/G/B/Y/IR/UV

//////

0 - 60

74 x 60 x 18

Emitting Area 50x50

UBL-100100-W/R/G/B/Y/IR/UV

//////

0 - 60

126x113x20

Emitting Area 100x100
