Model
UBL-3030-W/R/G/B/Y/IR/UV
|
Lighting |
|||||||
|
Mode |
Back Lighting (Diffuse light) |
||||||
|
Working Distance |
0 - 60 mm |
||||||
|
Emitting Area |
30 x 30 mm |
||||||
|
Color |
|
|
|
|
|
|
|
|
Wave Length (nm) |
- |
490 |
545 |
585 |
660 |
1100 |
400 |
|
LED Life |
Over 20,000 hr*1 |
Over 30,000 hr*1 |
|||||
|
Electrical |
|||||||
|
Power Consumption |
19V/ 1.4W |
19V/ 1.4W |
20V/ 1.5W |
12V/ 0.9W |
13V/ 1W |
9V/ 0.7W |
13V/ 1W |
|
Drive Current |
75 mA |
||||||
|
Cable Length |
300 mm |
||||||
|
Connector |
SMP-03V, 3pin (Male) for Constant Current Drive or SMP-02V, 2pin (Male) for Constant Voltage Drive |
||||||
|
Environmental |
|||||||
|
Operation |
Temp. 0~40 ℃, Humidity 20~85% (No condensing) |
||||||
|
Storage |
Temp. -20~60 ℃, Humidity 20~85% (No condensing) |
||||||
|
Power Supply Unit |
|||||||
|
Model |
|||||||
|
Mechanical |
|||||||
|

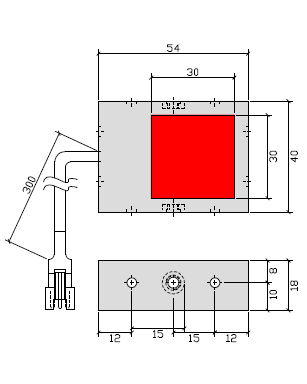

Dimension |
54 x 40 x 18 mm (Lx W x H) |
||||||
|
Mounting Hole |
Φ3.2 |
||||||
|
Housing |
Steel |
||||||
|
Weight |
150 g |
||||||
|
(Remark *1：LED decade to 50% of initial intensity.) |
|||||||
|
|||||||||||
|
|||||||||||
|
|||||||||||
