Model
SBL-100100-W/R/G/B/Y/IR/UV
|
Lighting |
|||||||
|
Mode |
Back Lighting (Diffuse light) |
||||||
|
Working Distance |
0 - 60 mm |
||||||
|
Emitting Area |
100 x 100 mm |
||||||
|
Color |
|
|
|
|
|
|
|
|
Wave Length (nm) |
- |
490 |
545 |
585 |
660 |
1100 |
400 |
|
LED Life |
Over 20,000 hr*1 |
Over 30,000 hr*1 |
|||||
|
Electrical |
|||||||
|
Power Consumption |
19V/ 11.4W |
19V/ 11.4W |
20V/ 12W |
12V/ 12W |
13V/ 7.8W |
9V/ 5.4W |
13V/ 7.8W |
|
Drive Current |
600 mA |
||||||
|
Cable Length |
300 mm |
||||||
|
Connector |
SMP-03V, 3pin (Male) for Constant Current Drive or SMP-02V, 2pin (Male) for Constant Voltage Drive |
||||||
|
Environmental |
|||||||
|
Operation |
Temp. 0~40 ℃, Humidity 20~85% (No condensing) |
||||||
|
Storage |
Temp. -20~60 ℃, Humidity 20~85% (No condensing) |
||||||
|
Power Supply Unit |
|||||||
|
Model |
|||||||
|

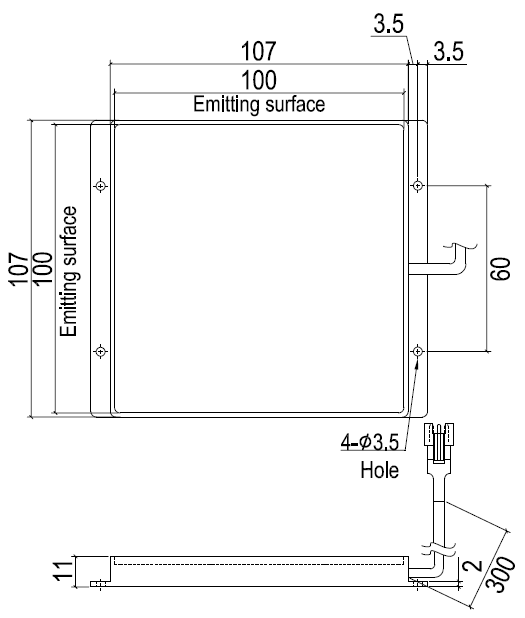

Mechanical |
|||||||
|
Dimension |
121 x 107 x 11 mm (Lx W x H) |
||||||
|
Mounting Hole |
Φ3.2 |
||||||
|
Housing |
Aluminum |
||||||
|
Weight |
550 g |
||||||
|
(Remark *1：LED decade to 50% of initial intensity.) |
|||||||
|
|||||||||||
|
|||||||||||
|
|||||||||||
