Model

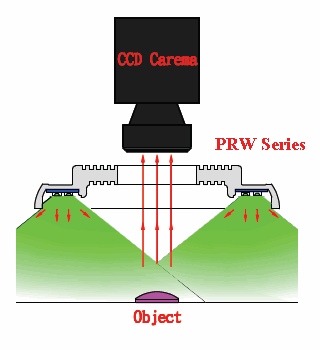

For Dark Field lighting use. Made up of chip LED, only 15 mm thickness, compact size and low weight.
l Cost-effective and widely used Constant Current control LED ring light.
l Steady brightness, long lasting and no thermal handling problem.
l Slight weight (65 g), only half or 1/3 of conventional LED ring light with the same or more brightness.
l Compact and robust mold housing with classically elegant appearance.
l LED arrays are assembled on flexible PCB with high precision to achieve desired ring angle from lower to vertical for different ring light model.
l Strobe and continuous operation available.
l Optional diffuse plate, extended cable.
l 2 or 3 LED rings, colors – white, red, green, blue, UV, IR.
l Edge, surface on metal or shining surface inspection.
l BGA, FPG soldering inspection.
l Printing, character inspection.
l Light source for 2D, 3D measuring or AOI inspection system.
|
Model |
Color |
Working Distance (mm) |
Dimension (mm) |
|
|
10~45 |
Inner Ø 50, Outer Ø 88, Height 15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
