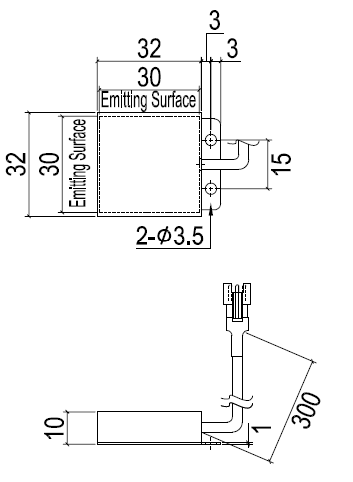

Dimensional Diagram

Specification

Accessories




Model


SBL-3030
SBL-5050
SBL-100100



SBL-3030-W/R/G/B/Y/IR/UV

Lighting

Mode

Back Lighting (Diffuse light)

Working Distance

0 - 60 mm

Emitting Area

30 x 30 mm

Color

Wave Length (nm)

-

490

545

585

660

1100

400

LED Life

Over 20,000 hr*1

Over 30,000 hr*1

Electrical

Power Consumption

19V/ 1.4W

19V/ 1.4W

20V/ 1.5W

12V/ 0.9W

13V/ 1W

9V/ 0.7W

13V/ 1W

Drive Current

75 mA

Cable Length

300 mm

Connector

SMP-03V, 3pin (Male)  for Constant Current Drive or

SMP-02V, 2pin (Male)  for Constant Voltage Drive

Environmental

Operation

Temp. 0~40 , Humidity 20~85% (No condensing)

Storage

Temp. -20~60 , Humidity 20~85% (No condensing)

Power Supply Unit

Model

PC-24V12W series

Mechanical

Dimension

43 x 36 x 10 mm (Lx W x H)

Mounting Hole

Φ3.2

Housing

Aluminum

Weight

150 g

(Remark *1:LED decade to 50% of initial intensity.)

  Accessories



Power Supply Unit

Model

Specification

PC-24V12W Analog power supply.

PC-24V12W-S

Strobe power supply.

PC-24V12W-SR

Programmable power supply



Cable

Model

Specification

 CAB-5M

 Extension cable 5 meter.

 CAB-6M

 Extension cable 6 meter.



Mounting Bracket

Model

Specification
