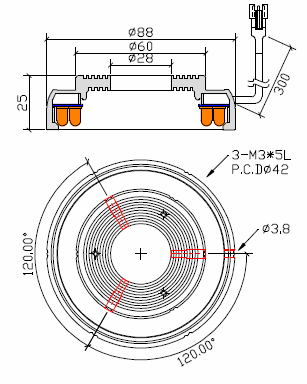

Dimensional Diagram

Specification

Accessories




Model


PRV-5088R2
PRV-5088R3
PRW-5088R2



PRV-5088R2-W/R/G/B/Y/UV/IR

Lighting

Mode

Vertical Lighting

Radiate Angle

0°

Working Distance

Dark-field < 150 mm

Color

Wave Length (nm)

-

490

545

585

660

1100

400

LED Life

Over 20,000 hr*1

Over 30,000 hr*1

Electrical

Power Consumption

19V/ 2.9W

19V/ 2.9W

20V/ 3W

12V/ 1.8W

13V/ 2W

9V/ 1.4W

13V/ 2W

Drive Current

150 mA

Cable Length

300 mm

Connector

SMP-03V, 3pin (Male)  for Constant Current Drive or

SMP-02V, 2pin (Male)  for Constant Voltage Drive

Environmental

Operation

Temp. 0~40 , Humidity 20~85% (No condensing)

Storage

Temp. -20~60 , Humidity 20~85% (No condensing)

Power Supply Unit

Model

PC-24V12W series

Mechanical

Dimension

Outer Ø 88 mm, Inner Ø 50 mm, Height 25 mm

Available  Lens Ø

28mm, 30mm, 32mm

Housing

Plastic (PC, Polycarbonate)

Weight

80 g

(Remark *1:LED life decade to 50% of initial intensity.)

  Accessories



Power Supply Unit

Model

Specification

PC-24V12W Analog power supply.

PC-24V12W-S

Strobe power supply.

PC-24V12W-SR

Programmable power supply



Cable

Model

Specification

 CAB-5M

 Extension cable 5 meter.

 CAB-6M

 Extension cable 6 meter.



Diffusion Plate

Model

Specification

 DIF-5088

 Diffusion plate for PR series ring light.
