                             >> Products  >> Constant Current Controller >> PC-SR series Programmable Power Supply  >> PC-24V60W-8-SR

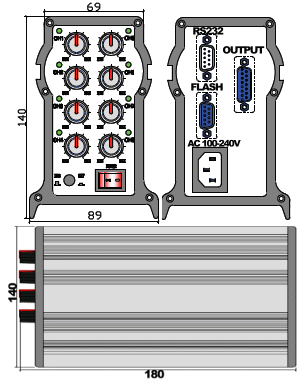

Dimensional Diagram

Specification

Accessories




Model




PC-24V60W-8-SR



Electrical

Input

AC 100-240 V ,50/60 Hz , 2A (max)

Output

24 V / 60W (max.)

Channel

1, 2, 4, 6, 8 Channel (*by model)

Channel Output

800 mA / Channel

Intensity & Strobe Control

Control Method

Constant Current Control

Internal Intensity Control

Front panel regulator 1, 2, 4, 6, 8 sets (*by model)

External Strobe Control

Hi=5 V, Low=0 V

Strobe Frequency

10 KHz (max.)

External Intensity Control RS-232 interface

Connector

Output

1, 2 Channel SMP-03V, 3 pin (Female)

4 Channel D sub, 15 pin (Male)

6, 8 Channel D sub, 25 pin (Male)

Strobe

1, 2 Channel SMP-02V, 2 pin (Female)

4, 6, 8 Channel D sub, 9 pin (Male)

RS232 Connector

1 – 8 Channel D sub, 9 pin (Female)

System Protection

Over Current Protect

Activated at 107% of rated current.

Over Voltage Protect

Activated at 150% of rated voltage.

Environmental

Operation

Temp. 0~60, Humidity 20~85% (No condensing)

Storage

Temp. -20~60,Humidity 20~85% (No condensing)

Mechanical

Housing

Molding Aluminum




  Accessories
