  LL series Linear Light

Model


LL-15300
LL-15600
LL-15900
LL-151200
LL-151500

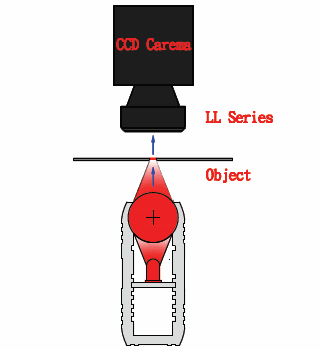

Provide a concentrate high intensity linear light. Especially suited for Line Scan Camera, Web Inspection and other applications need high intensity lights.






  特點


l  Much brighter then bar array light, provide higher contrast for inspection small dent or scratch.

l  Standard product emitting length 30, 60, 120 mm.

l  Dual functionality - provide both bright filed and dark filed lighting in one light depend on mounted angle.

l  Even illumination – brightness of each section was evenly controlled even longer then 3M length.

l  High flexibility – bar lights can be combined or paralleled with to create a wide or large filed of view applications.

l  Strobe and continuous operation available.


  適合用途


l  Line scan system lighting.

l  Web inspection lighting ie glass fiber cloth or textile defect inspection.

l  Printed character inspection or recognizing.

l  Light source for precision measuring, packing sorting.

l  Edge detection, scratched on glass or shining surface.


  型號表


Model

Color

Working Distance (mm)

Dimension (mm)

LL-15300-W/R/G/B/Y/IR/UV

//////

0 - 30

312 x 24 x 58

Emitting Area 15x300

LL-15600-W/R/G/B/Y/IR/UV

//////

0 - 30

612 x 24 x 58

Emitting Area 15x300

LL-15900-W/R/G/B/Y/IR/UV

//////

0 - 30

912 x 24 x 58

Emitting Area 15x900

LL-151200-W/R/G/B/Y/IR/UV

//////

0 - 30

1512 x 24 x 58

Emitting Area 15x1200

LL-151500-W/R/G/B/Y/IR/UV

//////

0 - 30

1512 x 24 x 58

Emitting Area 15x1500
